The cement silo (cement tank) consists of: steel structure part, ladders, guardrail, feeding pipes, dust collectors, pressure relief valves, difference in degree level gage, and discharge valves.Description of dust removal system, broken arch device and material level device:
The cement silo (cement tank) consists of: steel structure part, ladders, guardrail, feeding pipes, dust collectors, pressure relief valves, difference in degree level gage, and discharge valves. Description of dust removal system, broken arch device and material level device.

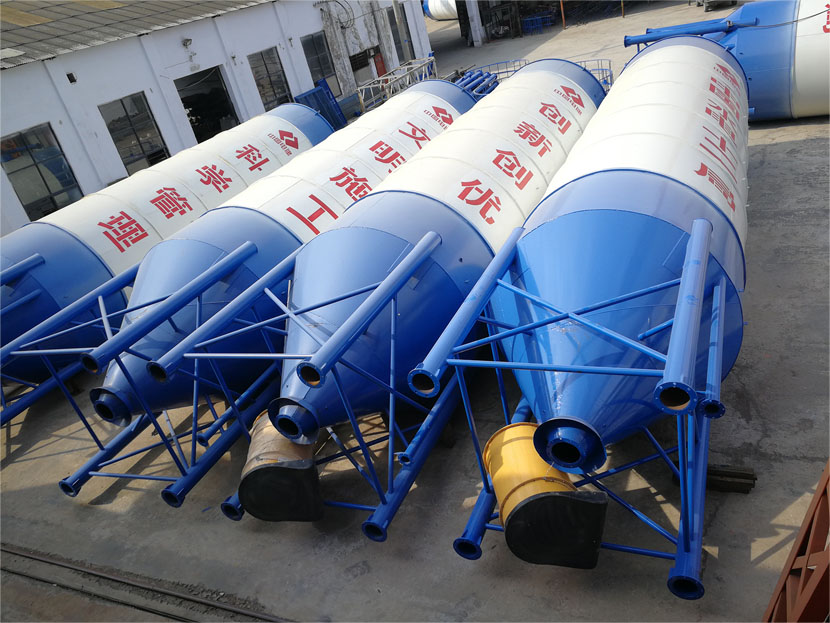

The whole vertical cement tank is a cylinder welded by steel plate, and the bin body consists of: the bin body part, ladder, guardrail, feeding pipe, dust collector, pressure safety valve, high and low level meter, discharge valve, etc. A pressure relief valve is designed on the top of the dust collector to prevent accidents.
Model | capacity(T) | diameter（m） | Total height of tank（m） |
JXZ-30 | 30 | 2.5 | 11.4 |
JXZ-50 | 50 | 3 | 12 |
JXZ-80 | 80 | 3 | 15.6 |
JXZ-100 | 100 | 3 | 18 |
JXZ-150 | 150 | 3 | 29 |
JXZ-200 | 200 | 4.5 | 25.2 |
JXZ-300 | 300 | 4.5 | 29.5 |
JXZ-500 | 500 | 6 | 28.8 |
1. Dust removal system: The top of the cement silo is equipped with an electric dust removal device, which can effectively adsorb suspended particles in the silo and reduce pollution to the surrounding environment.
2, arch breaking device: cement silo cone with wind blowing arch breaking device. The small electromagnetic reversing valve in the air control box is used to control the release of compressed air to break the arch of cement and various powders to avoid the accumulation of powder and cause blockage.
3, material level device: cement bin material level device can sense the storage height of materials in the bin.
