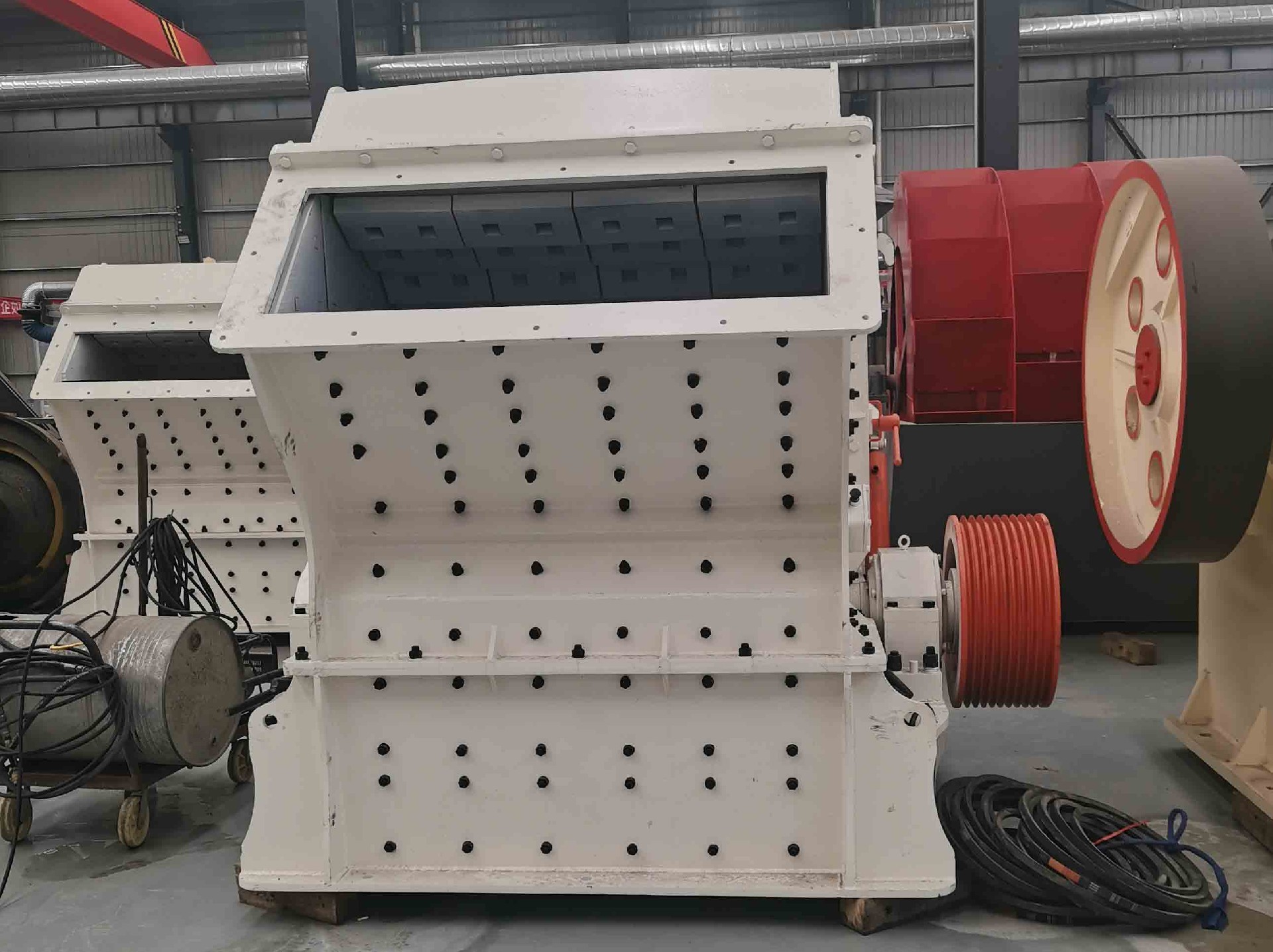

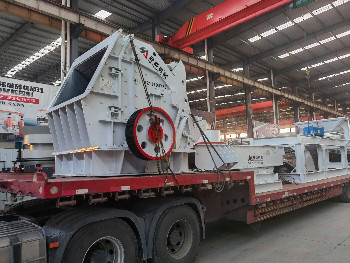

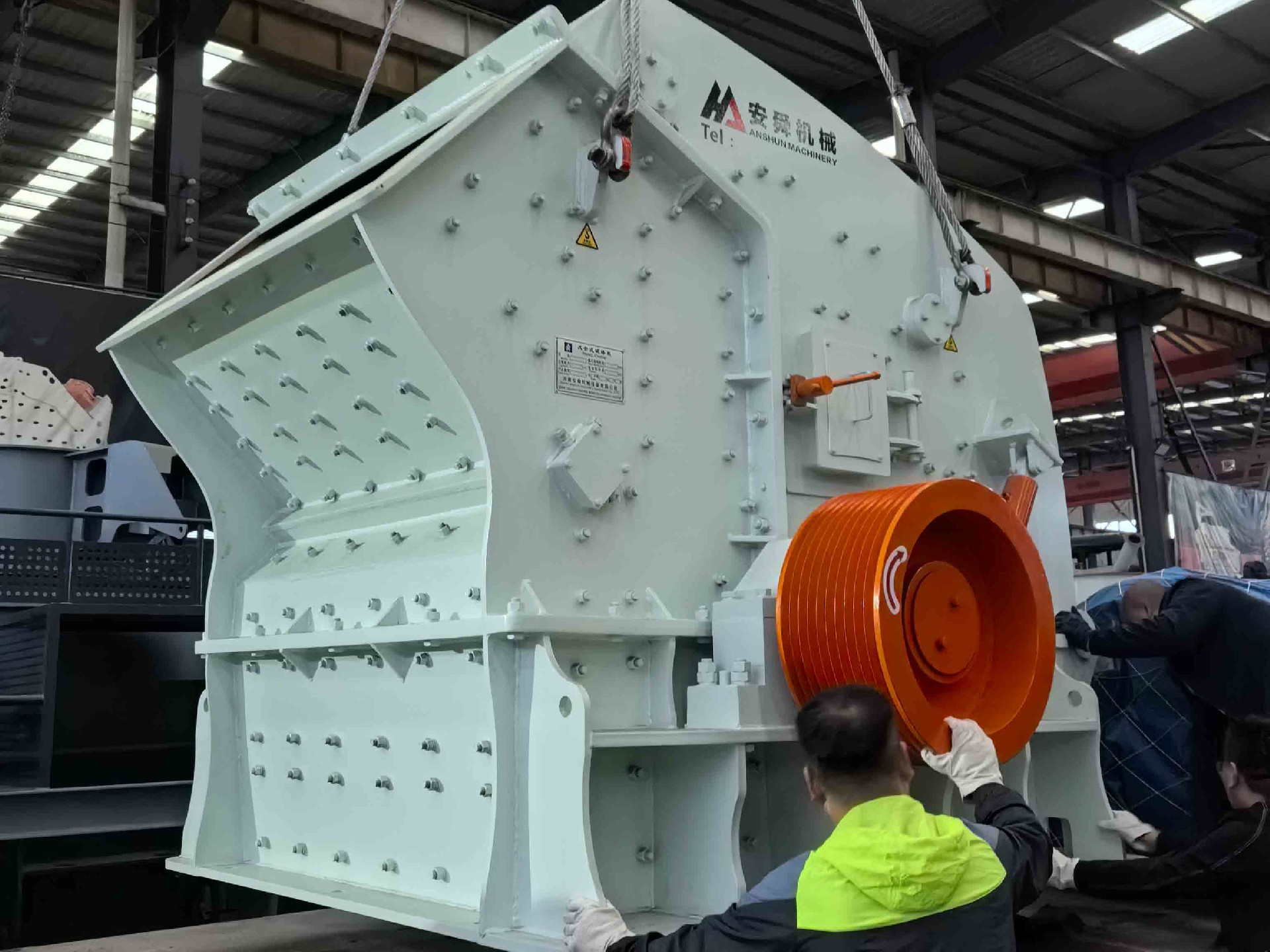

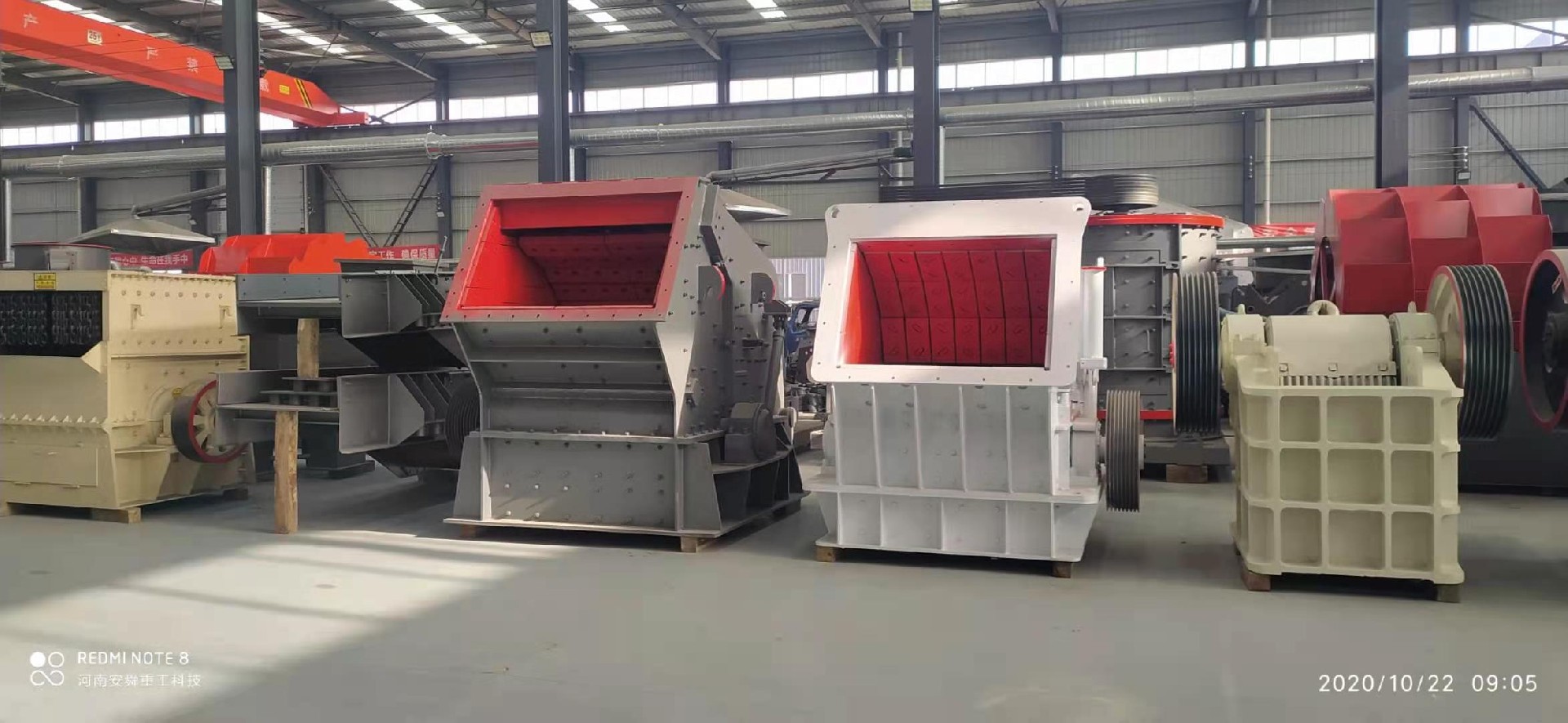

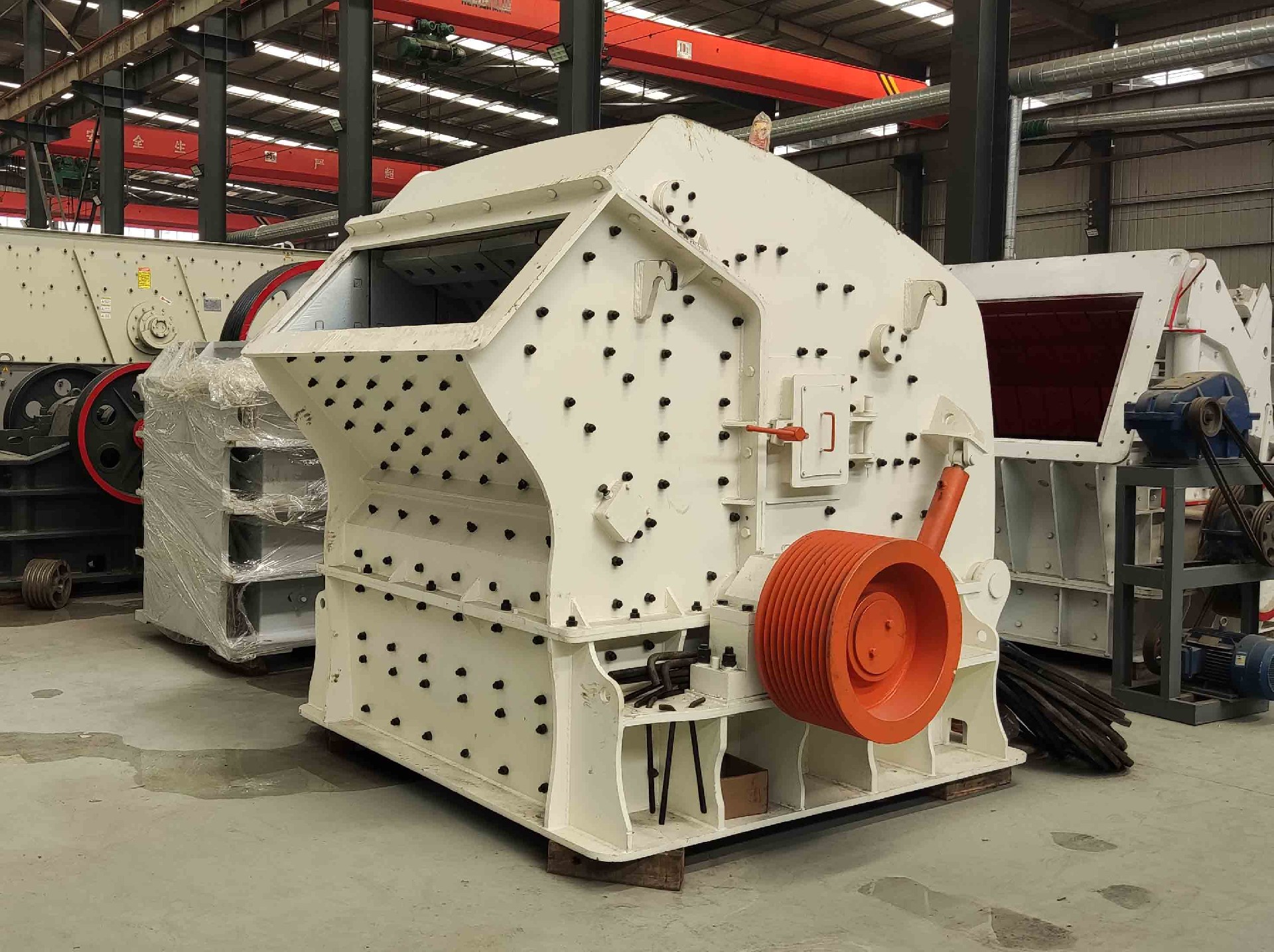

An impact crusher is a crushing machine that uses impact energy to crush materials. This crushing equipment can handle various materials with a particle size not exceeding 1000 mm and a compressive strength not exceeding 350 MPa. It has a large crushing ratio, high crushing efficiency, and easy maintenance. The product is cube-shaped and is an ideal processing equipment for aggregates used in highway and hydropower construction. Impact crushers are widely used in highway construction, water conservancy projects, and construction gravel processing due to their stable performance.
Impact crushers use impact energy to break materials. When working, driven by the motor, the rotor rotates at high speed. When the material enters the blow bar action area, it is crushed by impact with the blow bar on the rotor, thrown to the impact device for grinding again, and bounces back from the impact lining. It goes to the plate hammer action area for re-crushing, and this process is repeated until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the material discharge particle size and shape.
Model | Rotor Size(mm) | Feed Opening (mm) | Max Feed Size (mm) | Capacity(t/h) | Power(kW) | Weight(t) |
PF-1007 | 1000×700 | 400×730 | 250 | 30-50 | 37-55 | 9.5 |
PF-1010 | 1000×1050 | 400×1080 | 300 | 50-80 | 55-75 | 14 |
PF-1210 | 1250×1050 | 400×1080 | 300 | 70-120 | 110-132 | 17 |
PF-1214 | 1250×1400 | 400×1430 | 300 | 130-180 | 132-160 | 22 |
PF-1315 | 1320×1500 | 830×1520 | 350 | 160-250 | 185-200 | 26 |
PF-1320 | 1320×2000 | 830×2030 | 400 | 300-350 | 220 | 30 |
PF-1520 | 1520×2000 | 860×2050 | 700 | 300-550 | 2×200 | 49 |
Great Breaking Force
The rotor has a high-strength and heavy-duty design, has a significant moment of inertia and impact crushing force, and is more suitable for crushing large materials.
One Machine for Two Purposes
By adjusting the installation position of the impact rack, the conversion between coarse crushing and medium-fine crushing can be achieved, and one machine can be used for both purposes.
Hydraulic Adjustment
The gap between the impact plate and the plate hammer is adjusted hydraulically, which is convenient and quick and can effectively control the discharge particle size and good particle shape.
Easy Maintenance
The frame is simple and convenient to open, making it easy to perform maintenance inspections and replace worn parts inside the machine.
