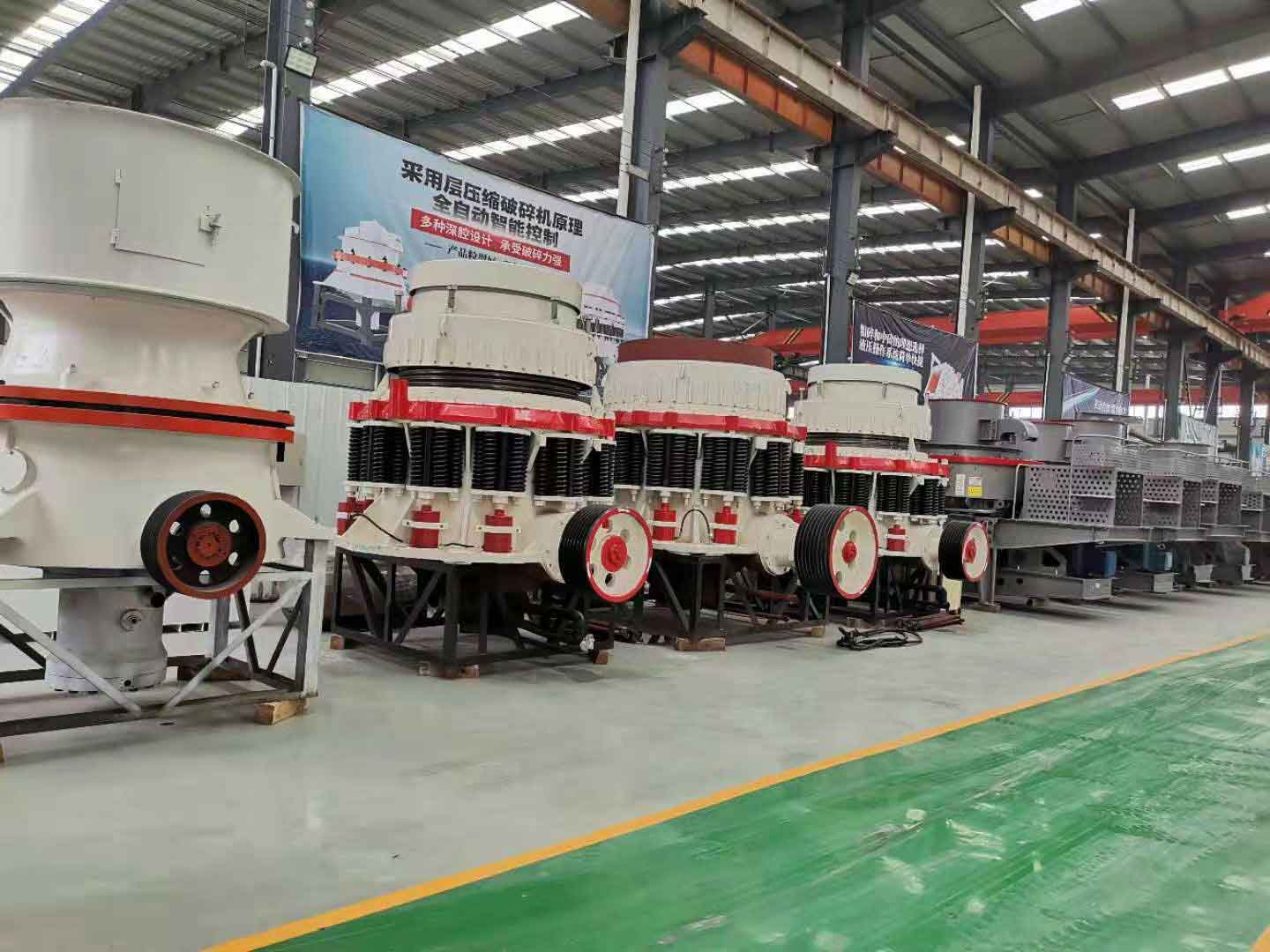

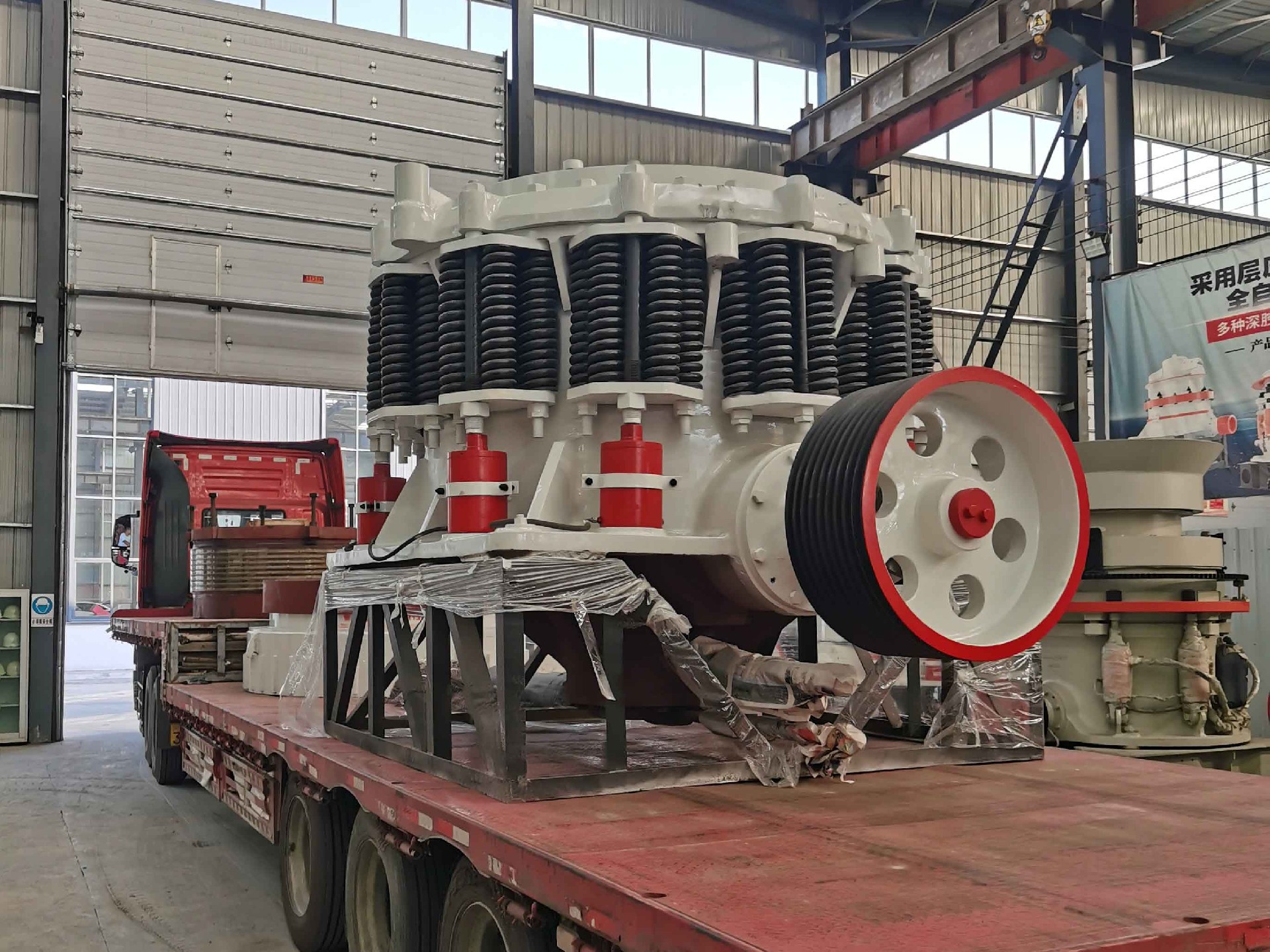

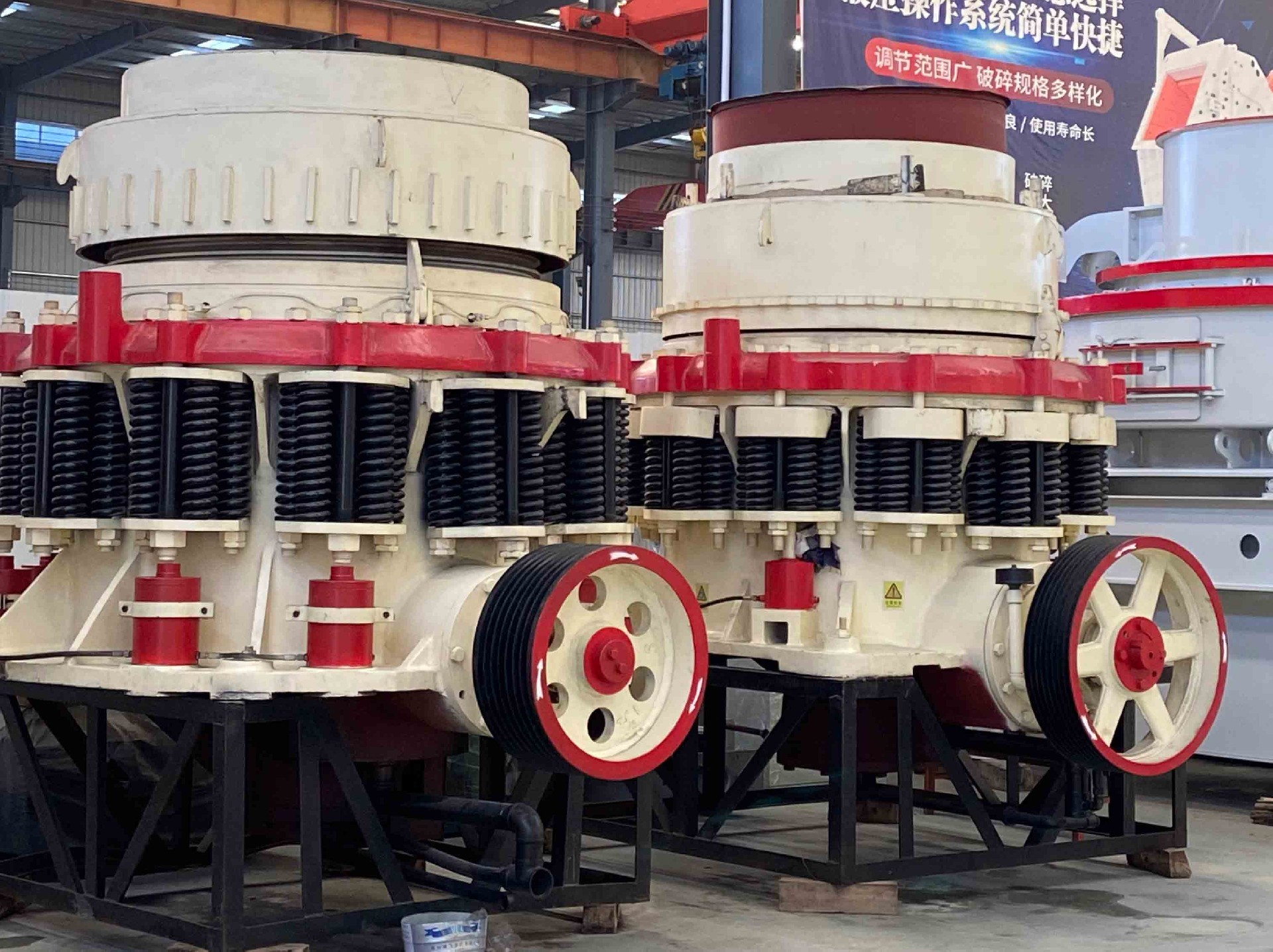

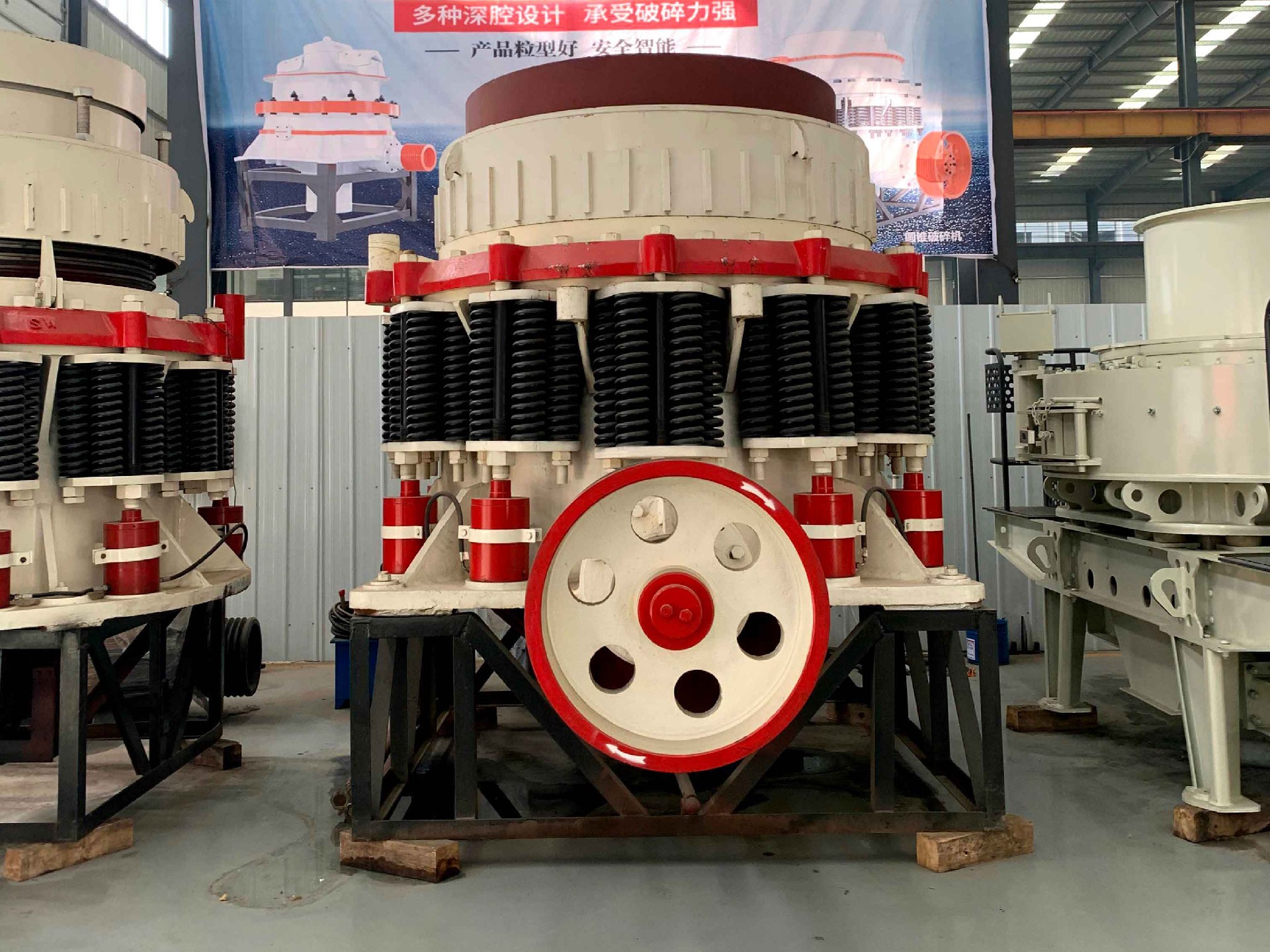

CS Efficiency Spring Cone Crusher is suitable for crushing ore and rock above medium hardness. It has a reliable structure, high production efficiency, easy adjustment, economic use, etc. The spring safety system plays an overload protection role, which can make super hard foreign matter (such as iron block, etc.) pass through the crushing chamber without damaging the machine. It adopts two sealing forms of dry oil or water to isolate the stone powder from the lubricating oil and ensure the machine operates reliably. The crushing chamber type is determined by the particle size of the finished material; the standard type is used for medium crushing operation, and the medium and short head type is used for fine crushing operation.
The CS series high-efficiency spring cone crusher, used in the black, non-ferrous metal processing process, can effectively reduce the ore into the grinding particle size to achieve more broken, less grinding. This not only improves the mill production capacity but also saves electricity and steel, greatly improving the economic benefits of the mine.
When the crusher works, the motor, through the elastic coupling, the drive shaft, and a pair of bevel gears, drives the eccentric shaft sleeve to rotate. The rotary pendulum movement drives the crushing cone in the eccentric sleeve, so the crushing and rolling walls are sometimes close and sometimes far away. The crushing chamber's ore is constantly squeezed, impacted, and broken.
Model | Movable Cone Diameter | Cavity | Feed Opening(mm) | Outlet Size Can Be Adjusted(mm) | Capacity(t/h) | Motor Power(kW) | Weight(t) | Overall Dimension(mm) | |
Closed Size(mm) | Opening Size(mm) | ||||||||
CS75B | 900(3') | Fine | 83 | 102 | 9-22 | 45-91 | 75 | 15 | 2821 × 1880 × 2164 |
Coarse | 159 | 175 | 13-38 | 59-163 | |||||
CS110B | 1200(4') | Fine | 127 | 131 | 9-31 | 63-188 | 110 | 20 | 2821 × 1974 × 2651 |
Medium | 156 | 156 | 13-38 | 100-200 | |||||
Coarse | 178 | 191 | 19-51 | 141-308 | |||||
CS160B | 1295(41/4') | Fine | 109 | 137 | 13-31 | 109-181 | 160 | 27 | 2800 × 2342 × 2668 |
Medium | 188 | 210 | 16-38 | 132-253 | |||||
Coarse | 216 | 241 | 19-51 | 172-349 | |||||
CS220B | 1395 | Fine | 155 | 173 | 19-45 | 120-200 | 220 | 31 | 3360 × 2650 × 3050 |
Medium | 188 | 198 | 22-50 | 150-300 | |||||
Coarse | 230 | 245 | 25-65 | 200-400 | |||||
CS240B | 1650(51/2') | Fine | 188 | 209 | 16-38 | 181-327 | 315 | 55 | 3911 × 2870 × 3771 |
Medium | 213 | 241 | 22-51 | 258-417 | |||||
Coarse | 241 | 268 | 25-64 | 299-635 | |||||
CS400B | 2134(7') | Fine | 253 | 278 | 19-38 | 281-726 | 110 | 110 | 4613 × 3251 × 4732 |
Medium | 303 | 334 | 25-51 | 608-998 | |||||
Coarse | 334 | 369 | 31-64 | 789-1270 | |||||
1. Inherit the classic structure design with stable and reliable performance. The reason why the spring cone crusher has become a widely used cone crusher at home and abroad is its reliability in a variety of working conditions, and the compound cone crusher retains the classic structure; equipment reliability has been largely guaranteed
2. A variety of cavity types are available, and the application of a variety of working conditions has two types: standard type and short head type; each type is equipped with a variety of cavity types that can be applied to a variety of hardness materials in the crushing and fine crushing operation needs
3. Laminated crushing design, good discharge particle shape, the use of laminated crushing principle to break the material, high crushing efficiency, low wear of wearing parts; The finished product is a cube after crushing, and the fine grain content is high, which can well meet the use needs of some high-quality aggregates at this stage
4. Long service life, a wide range of applications The body and accessories with high-quality steel effectively reduce the material damage to the body and accessories and can break dozens of materials.
